Side Stand
`
`
`
`
`
`
`

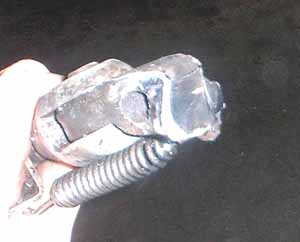

Here's another view of the bracket.  Now the problem will be holding the bracket while I do the weld.

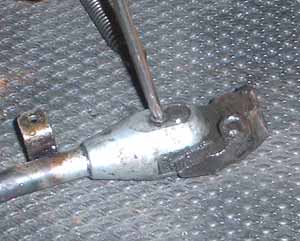

I won't show the whole fiasco where I tried to epoxy the bracket to the frame in the right position so I could then weld it.  It didn't work so I peeled off the epoxy and tried to fixture the thing up.  I took out this screw so I can take the stand apart easily once I tack weld the bracket.

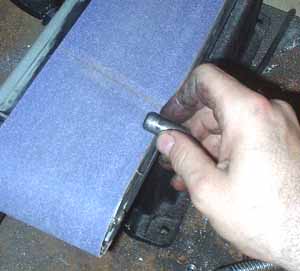

The pin was binding.  Experience has taught me that any hangs up or deviations will result in too much force and the bracket will break at the tack weld and I have to grind everything clean again.  I sand off the burr on the pin.  The belt is not even running, I'm just rubbing it against the stopped belt.
