Saddlebags
`
`
`
`
`
`
`

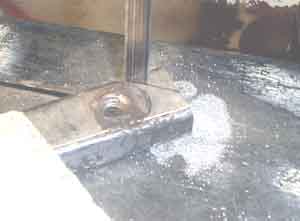

Now take the struts over to the trusty Jet Taiwan bandsaw and cut up the semicircle but do not cut all the way through the flange.  Stop when the blade hits the flange.
Now cut the little triangle out leaving the flange intact..

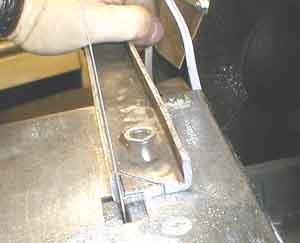

This picture shows the other side of the semicircle being cut out.  It looks like the bandsaw blade is casting a shadow across the strut bit really that's the hole from where we cut out the first little triangle.
