Primary Leak
`
`
`
`
`
`
`
Of course when you handle the cable it pulls apart.  If I wasn't in a blind panic I would have put some oil on it.  As it was I stuffed it back in under the rubber which made the cable part poke out in the primary cover....

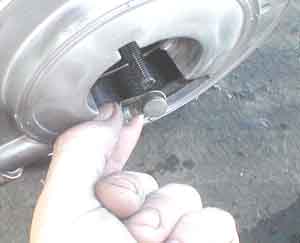

Where I can put the little hook thingy on the now exposed cable.  Do not drop it into the tranny or you will become a suicide risk.

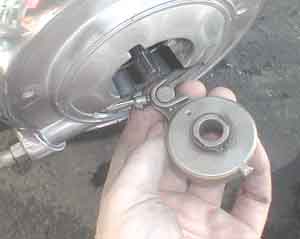

Slip on the magnificent ball ramp assembly.  Notice the ridge where the hook mates so it only goes on one way.  This has always been important according to the manual but I fail to see why the hook can't go on either way in a design sense.  Only Harley knows for sure.
