Primary Leak
`
`
`
`
`
`
`

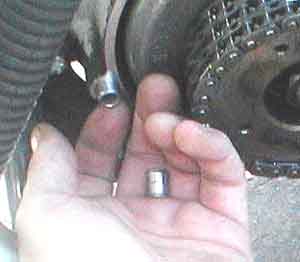

Back in go the hollow dowel pins, front and back.

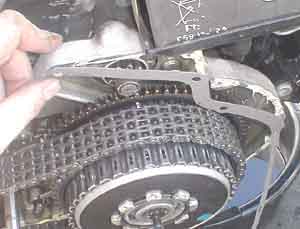

The gasket won't stay on the dowel pins because Harley never intended you to work with the bike on it's kickstand.  Hell, (I mean Heck), they never intended for you to work on it at all.  They expect you to take to you genuine authorized original factory service center and pay 80 bucks an hour to get it fixed.  That way you get a chance to but T-shirts twice-- once when you drop off the bike and once when you pick it up.  T-shirts are where the real money is and no liability issues either.  Too bad they have to sell bikes at all.  Anyway, brush on some assembly grease like I did and the gasket will stay in place even  though it is pointed a little down.
Put a little assembly lube on the gearshift shaft.
