Primary Leak

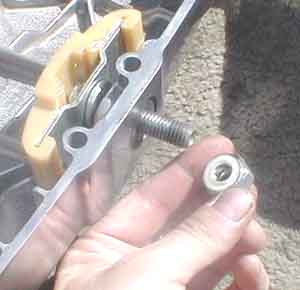

	Here's the goofy tensioner lock nut. Remember how it has to go on now because it in interferes with the kickstand. Make sure the nylon surface is clean and free of all grit. Same goes for the area on the case where it mates.
	Of course the nylon makes the nut act like those evil prevailing torque nuts I hate so much. It won't free run in the bolt because the nylon needs to thread on the bolt for a (supposedly) leak free seal. Two tools. What joy.

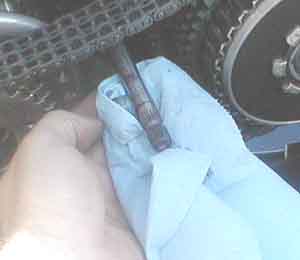

	Clean the gearshift shaft. A lot of dirt can collect in the splines and it might be pushed into the primary when you slide the cover on. Cleanliness is the sign of a competent mechanic. I try to be so clean I don't' even swear when I put em together (although it's hard not to swear sometimes).
