Primary Leak
`
`
`
`
`
`
`

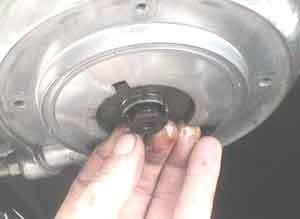

We're really jamming now as Frank Zappa would say.  Remember that the problem is a leaky primary cover gasket?  So here we are disassembling the clutch mechanism.  Turn the center bolt enough and this little fancy hex-threaded gizmo pops out of the assembly.  Thread it all the way off and toss it in the parts tray.
Out plops the breathtakingly gorgeous clutch release mechanism ball ramp subassembly.  Stunning.

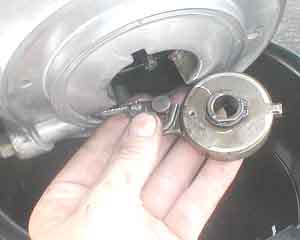

Pivot it back like this to get it off the cable.  If you haven't dropped any of the small parts in the oil pan below the bike you mind as well toss the little hook thingy in there now and get it over with.
