Regulator Bracket

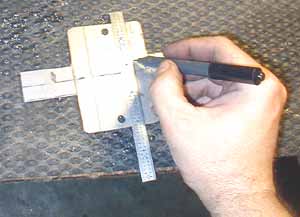

	Here I am trimming off the overhang and squaring things up. See the problem yet?
	Duh. The bracket can't bend down from the edge of the regulator and still be narrow enough to pick up the generator mounting bolts. ECO* approved, I draw new lines just wide enough to allow the end bell bearing to fit up in between the narrow tabs. * Engineering Change Order.

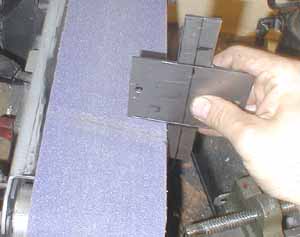

	OK, I went back the bandsaw and cut the 4 little areas out to narrow up the mount so it fits the generator. Even my rapidly disintegrating Olympus digital camera has enough resolution left to show that I had already bent one tab down before realizing my mistake and then smashed it back flat again. Now that I am trashing the Olympus in favor if the higher resolution, simpler and better laid out Fuji coolpix 2300 ($205 from NY), you can expect to make out even more of my mistakes in the future. After cutting the 4 little squares out I bend the tabs down by hammering on them while the mount was in a vise. The distance between the tab is wide enough to clear the generator end bell bearing and here I am measuring for where the outward bend should be. In retrospect I should have done this outward bend first and the bend you see already done should follow that. You'll see why.
