Primary Leak
`
`
`
`
`
`
`
Anti-seize, not Loctite.  If the bolts back out then put lockwashers under them.  Do not glue your bike together.

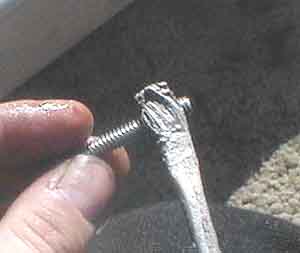

With all the old grungy Loctite removed and the nice slippery anti-sieze on, the bolts spin right in.  Better yet, they'll spin right out when you work on them the next time.  Now they free-run.  You could use your fingers if you wanted and just snug up the last quarter turn.  Same way coming apart-- crack em loose and the free-run the rest of the way.  Free run: Good.  Loctite, glue, Permatex and silicone: Bad.
Get all the screw started and, unlike me, who will be suffering a few pictures later, start the big footpeg screws right now talso.  I didn't and the gasket partially blocked the holes.  I was so late and I was so rushed I did not loosen the cover-- I just leaned on the wrench and forced the screws to cut into the paper gasket-- shame.
