Primary Leak

	Clean the gasket surface perfectly. Do not scrape or nick or pry on it ever. If it is an old old bike that has been abused you can knock down any high spots with a fine file and build up any gouges with a polyamide epoxy like JB Weld. Clean the gouge with carb or brake cleaner before using the epoxy. Under no circumstances should you use silicone or Permatex on the gasket. You should not have to glue your bike together. The silicone will get into the tranny and blow it (and you ) up. Death is no fun.

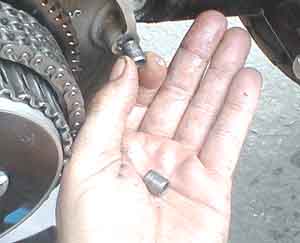

	Don't miss these little hollow dowel pins at the front and back.. They should pop out without force. Older bikes make have a press fit. If so, leave them in.

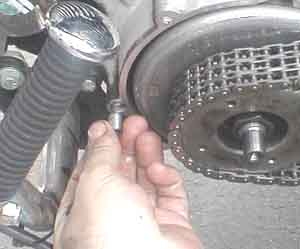

	Yes, there's one in the back too. Into the part's tray they both go.
