Office chair cylinder rebuild

Replacing a dead lift cylinder in a good office chair makes it work like new. pdf version

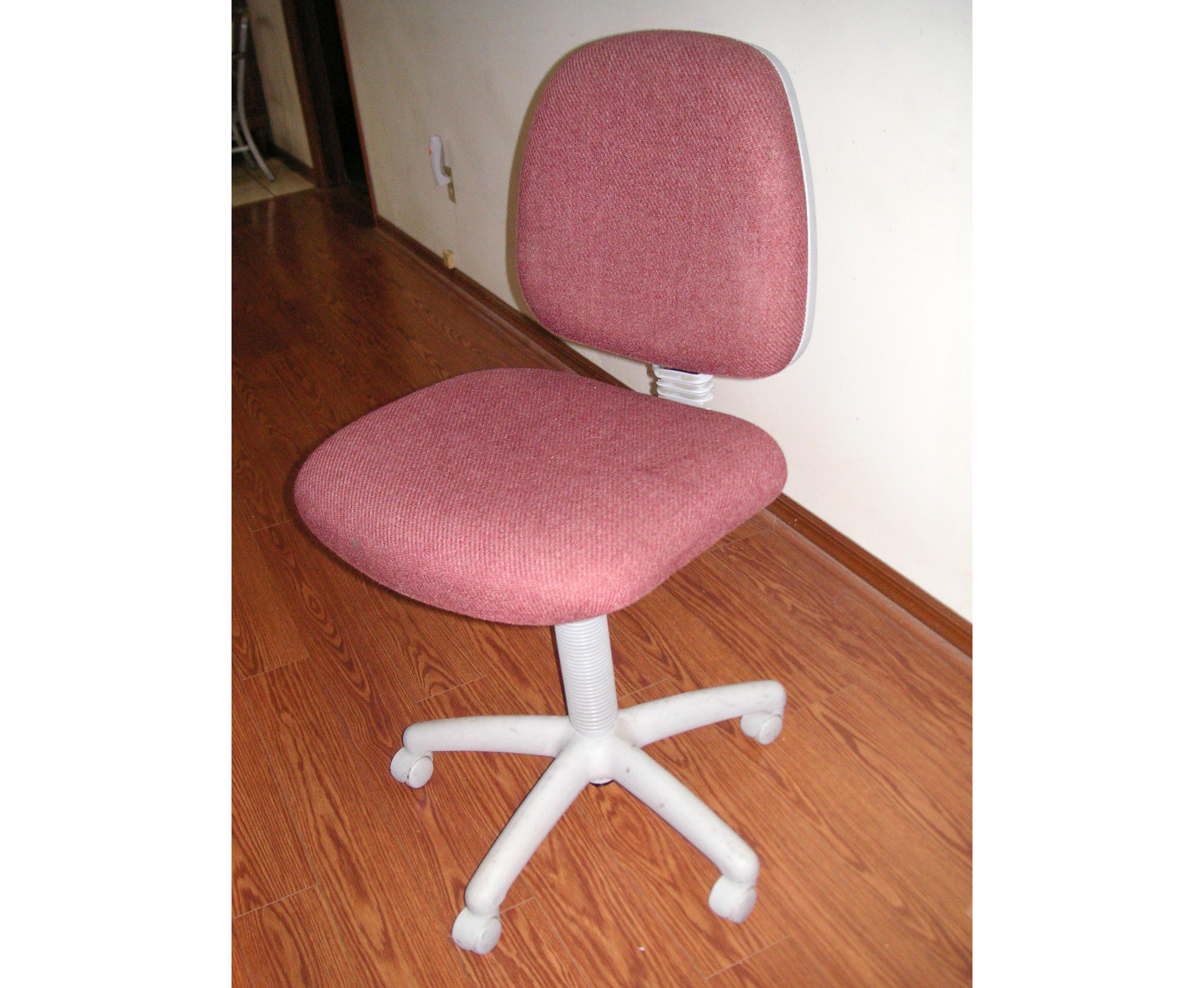

I bought eight of these arm-less office chairs at the flea market. They are sometimes called conference room chairs. I think I paid something like 10 or 15 dollars each. They have worked fine for many years. This year, one of them developed a dead lift cylinder. The original cylinder was marked "Suspa," but it looks like now they make hood lift gas cylinders, leaving the chair parts to go to China. It was a little tricky to find the right generic replacement cylinder. The chair base has a boss that the cylinder needs to clear.
Bottom of first columnmove down to the left
Office-chair-cylinder-rebuild_02

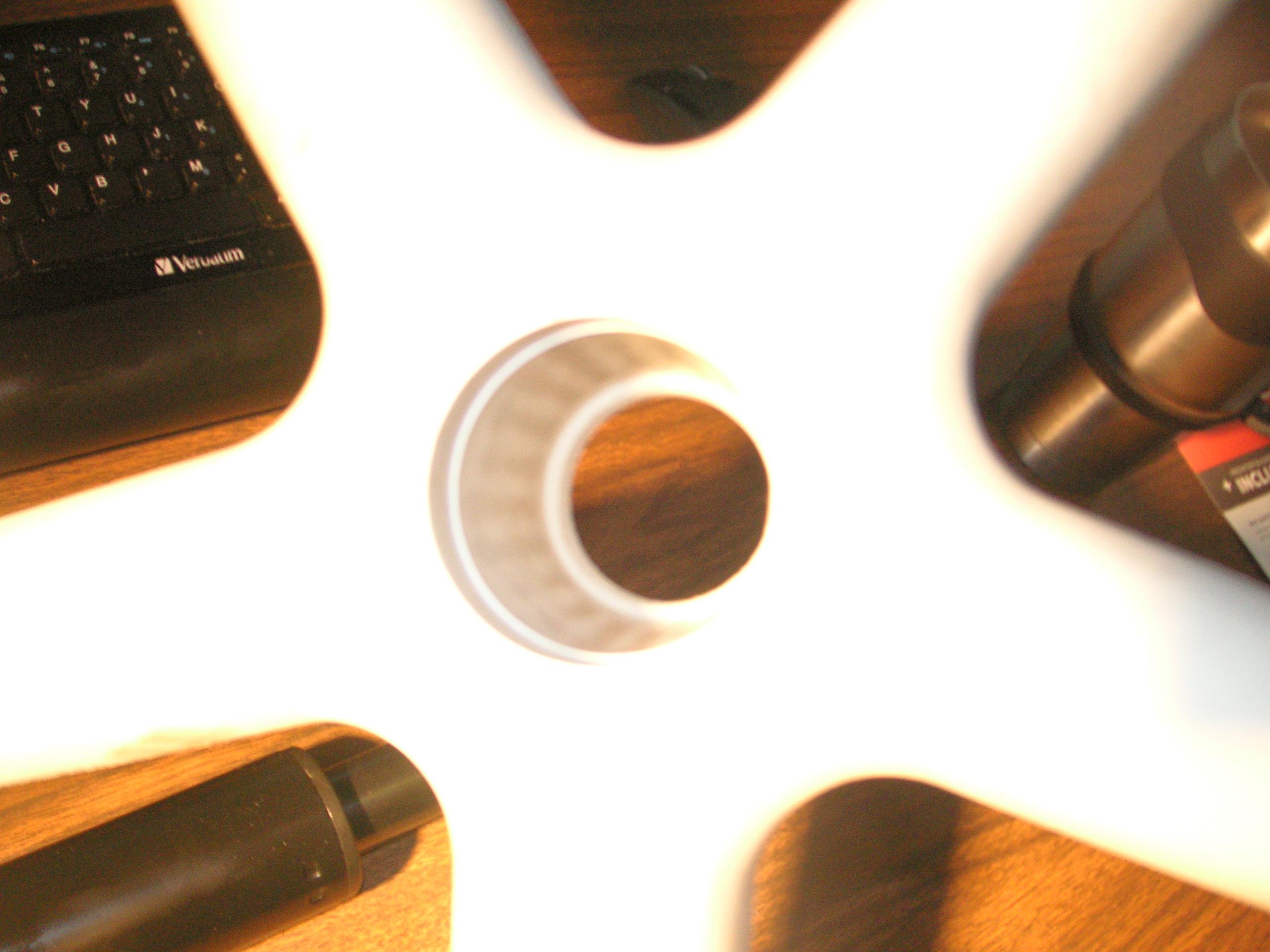

A rubber mallet got the dead cylinder out of the base. The cylinder must clear that bottom boss.
Office-chair-cylinder-rebuild_03

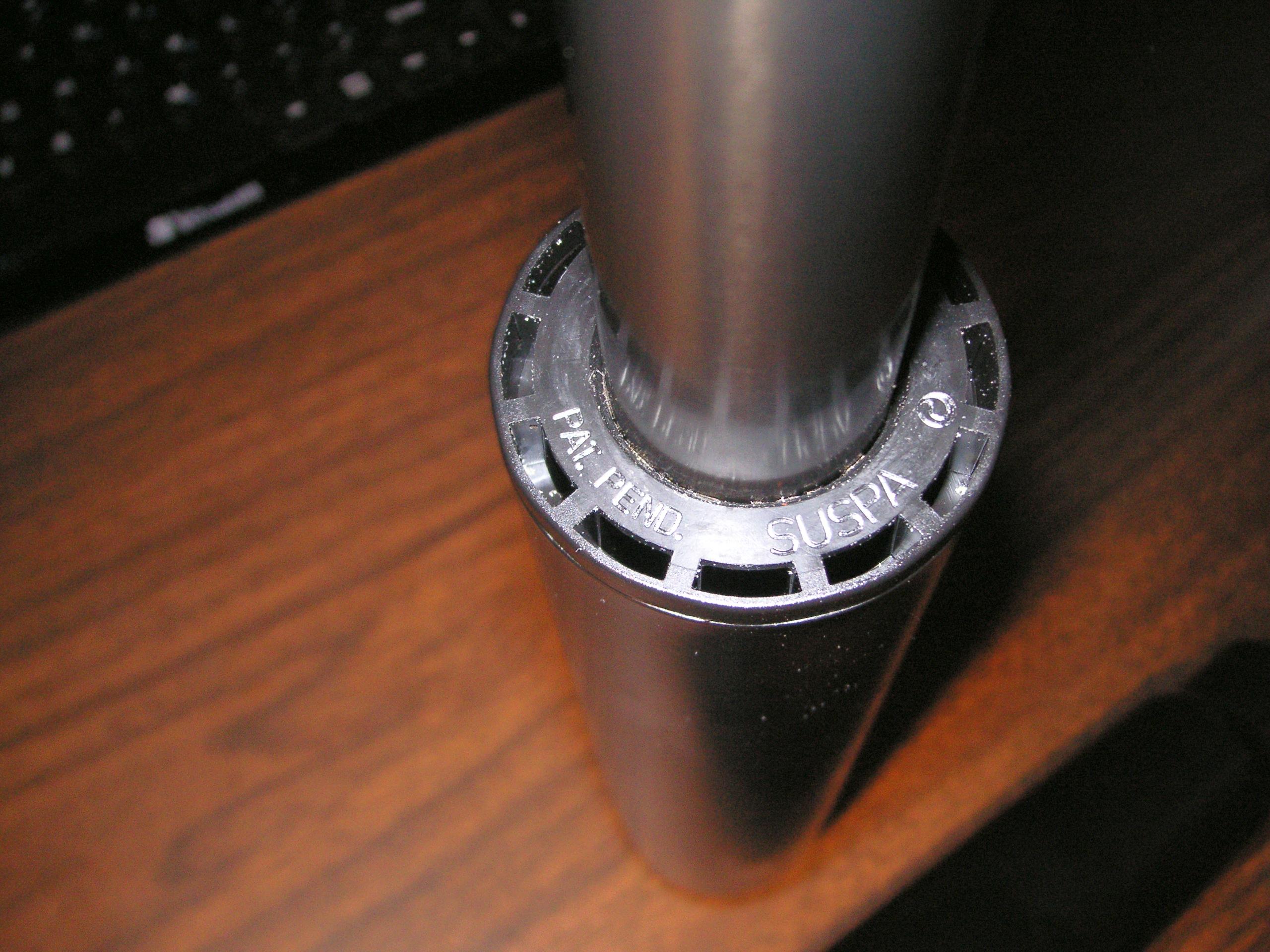

Here is the SUSPA marking, no luck finding a name-brand replacement. Typical.
Office-chair-cylinder-rebuild_04

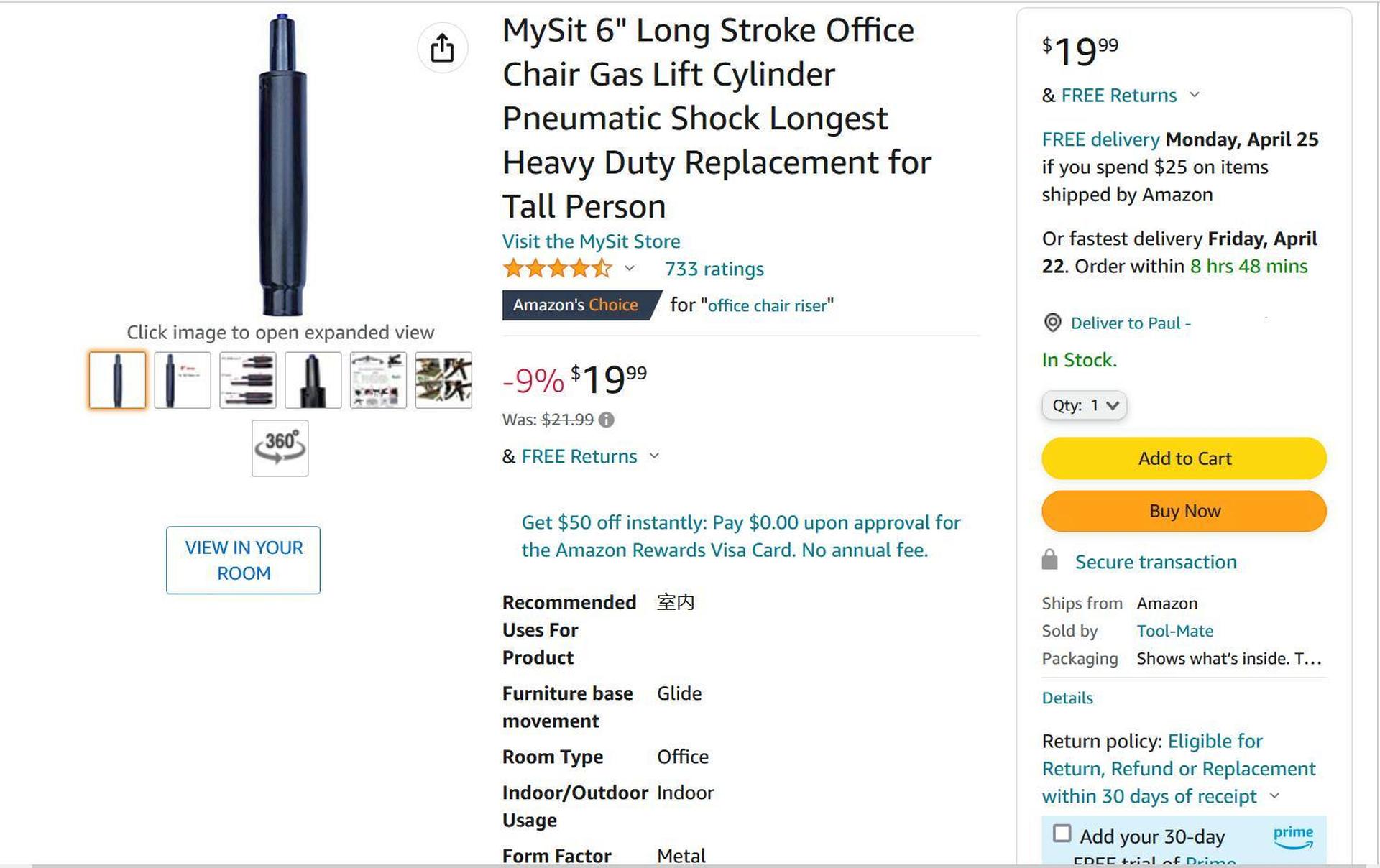

Amazon to the rescue. This long cylinder has the longer reduced diameter at the bottom to clear that boss in the chair base.. This lets the cylinder seat fully into the chair base.
move up a little to the right move down to the left
Office-chair-cylinder-rebuild_05

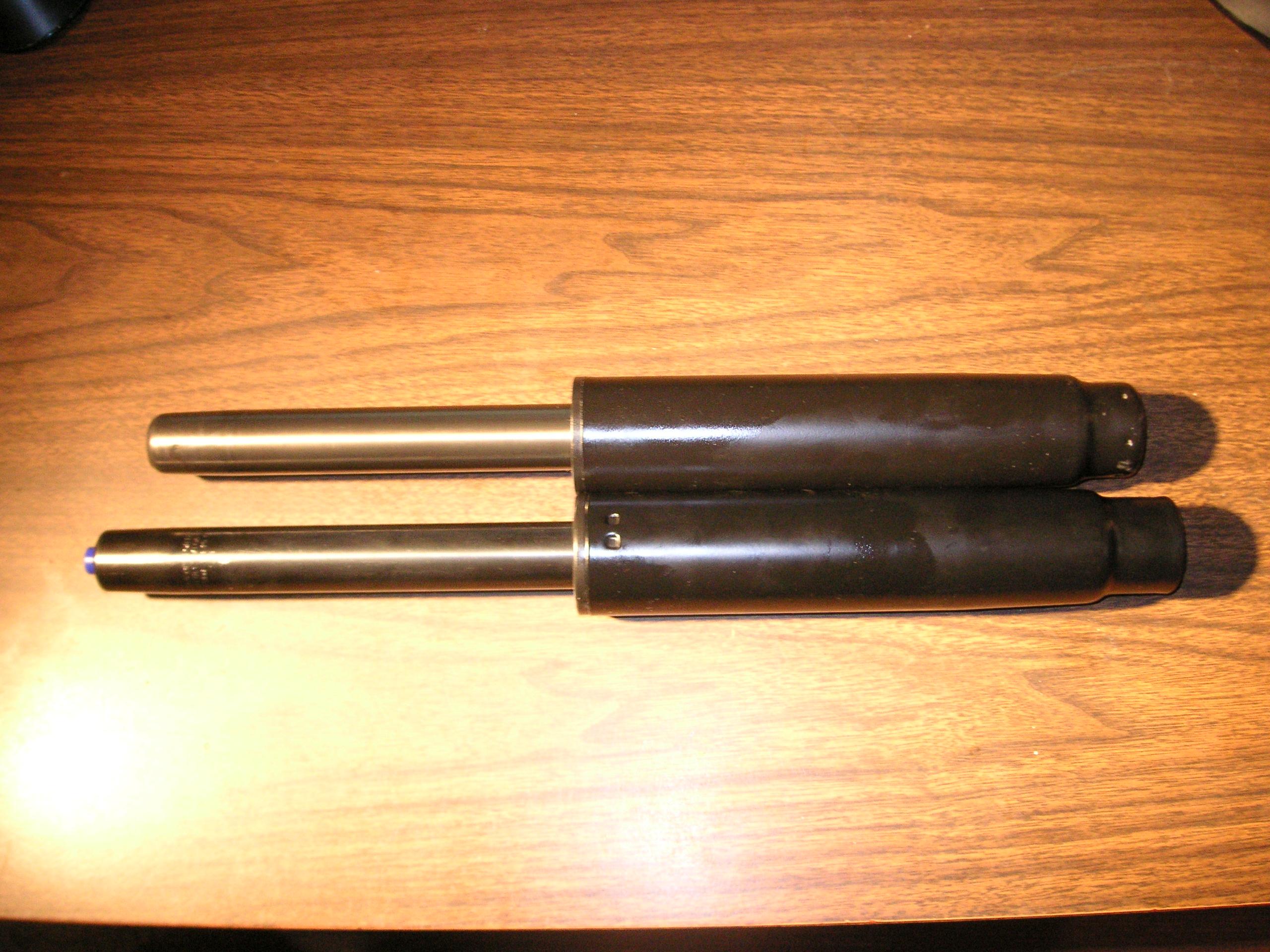

The new cylinder (bottom) is a bit longer, but the it is the base that is important.
.
Office-chair-cylinder-rebuild_06

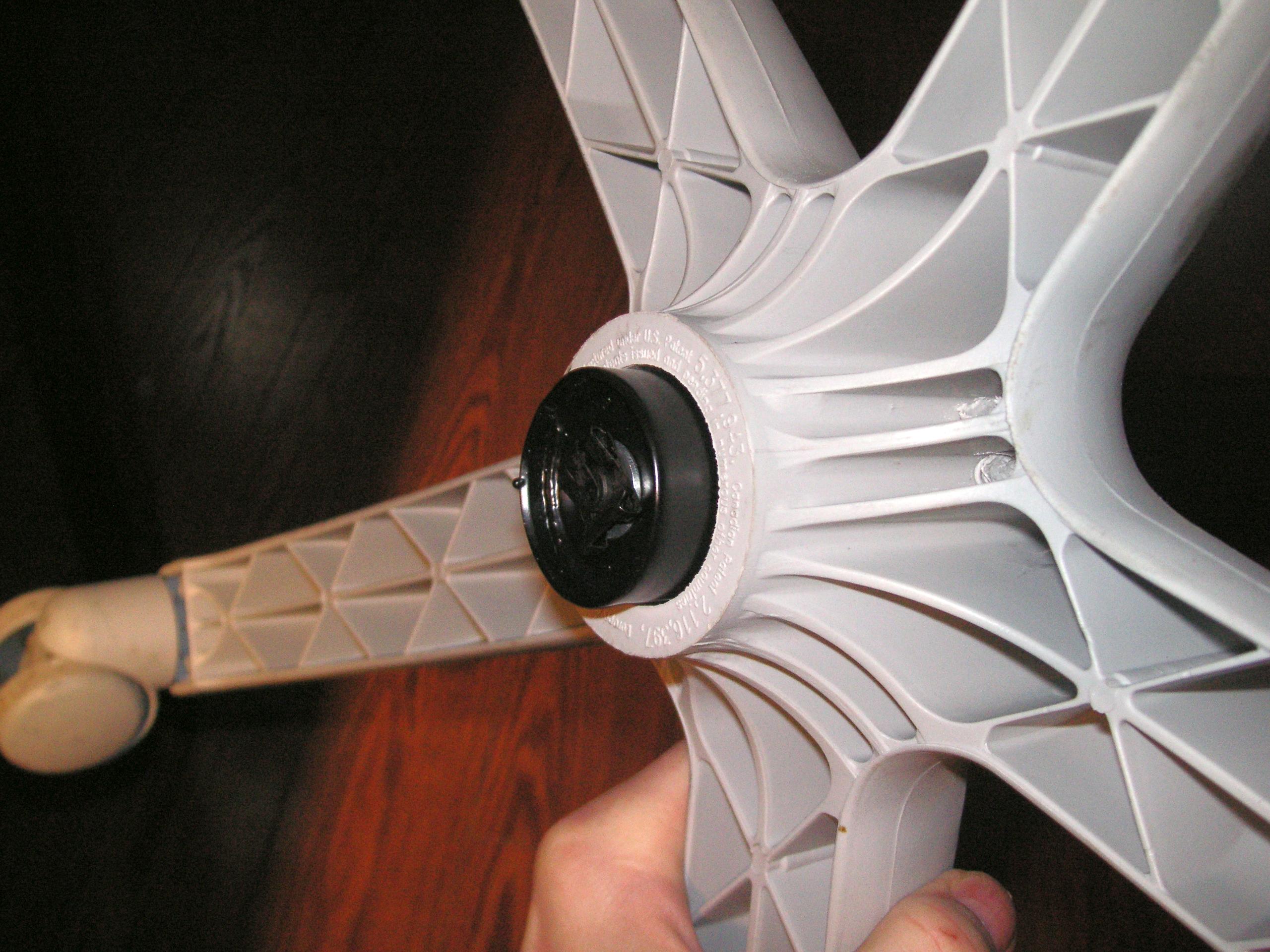

The new cylinder protrudes out the base since it can seat fully into the chair base.
Office-chair-cylinder-rebuild_07

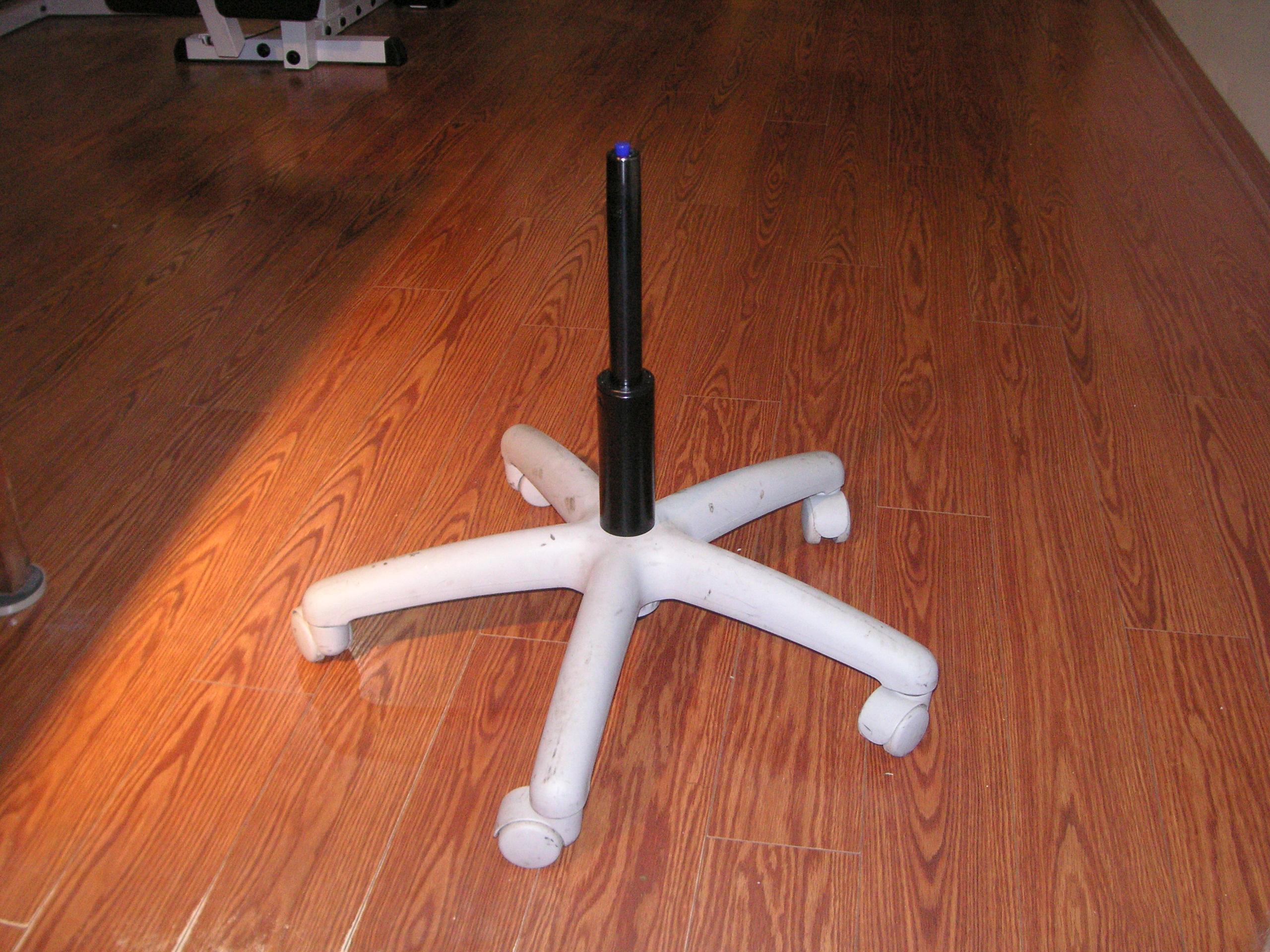

The new cylinder is a bit taller, but works fine.
move up a little to the right move down to the left
Office-chair-cylinder-rebuild_08

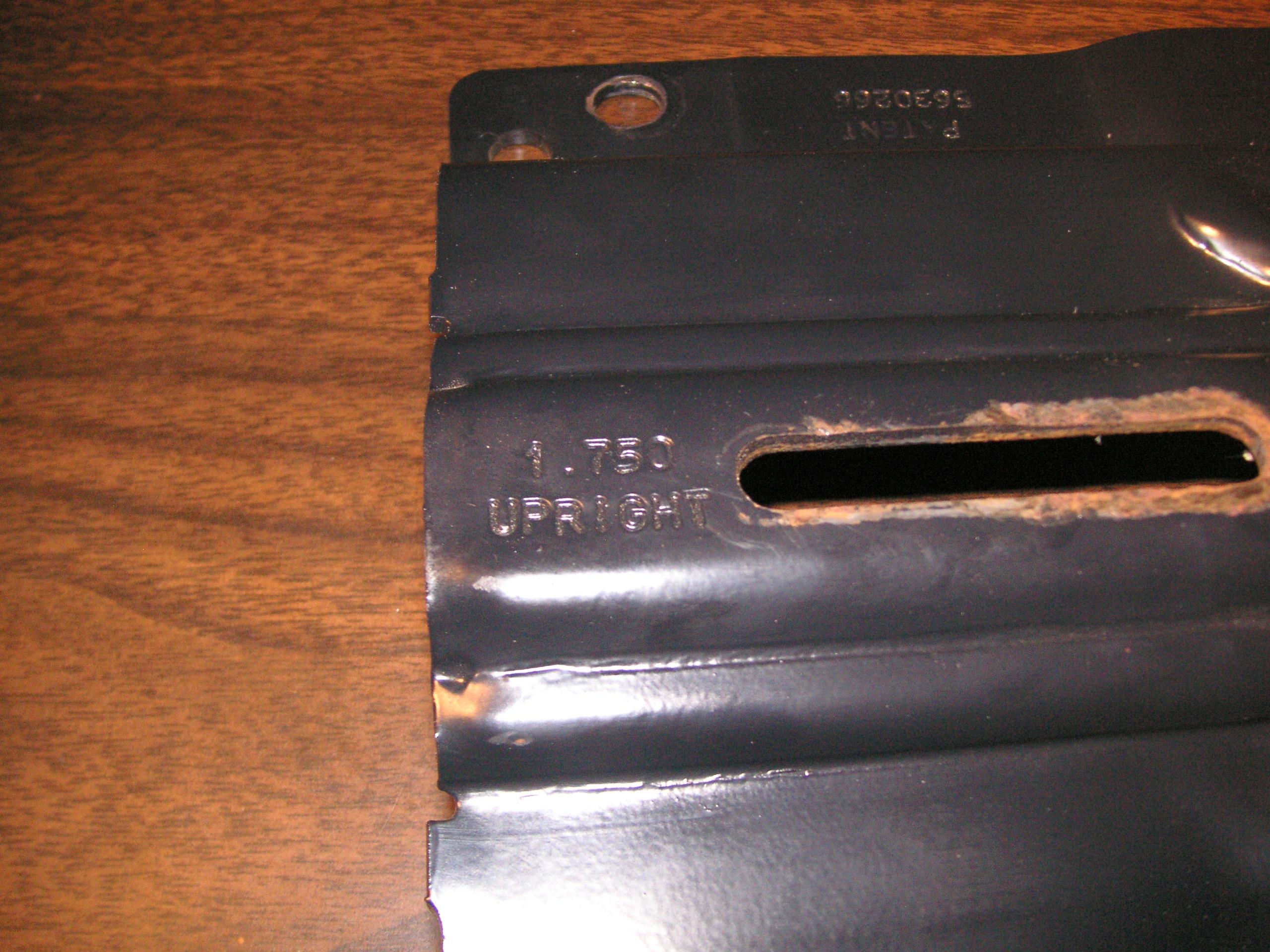

I recorded as much stuff from the chair as I could. This says "1.750 UPRIGHT"
Office-chair-cylinder-rebuild_09

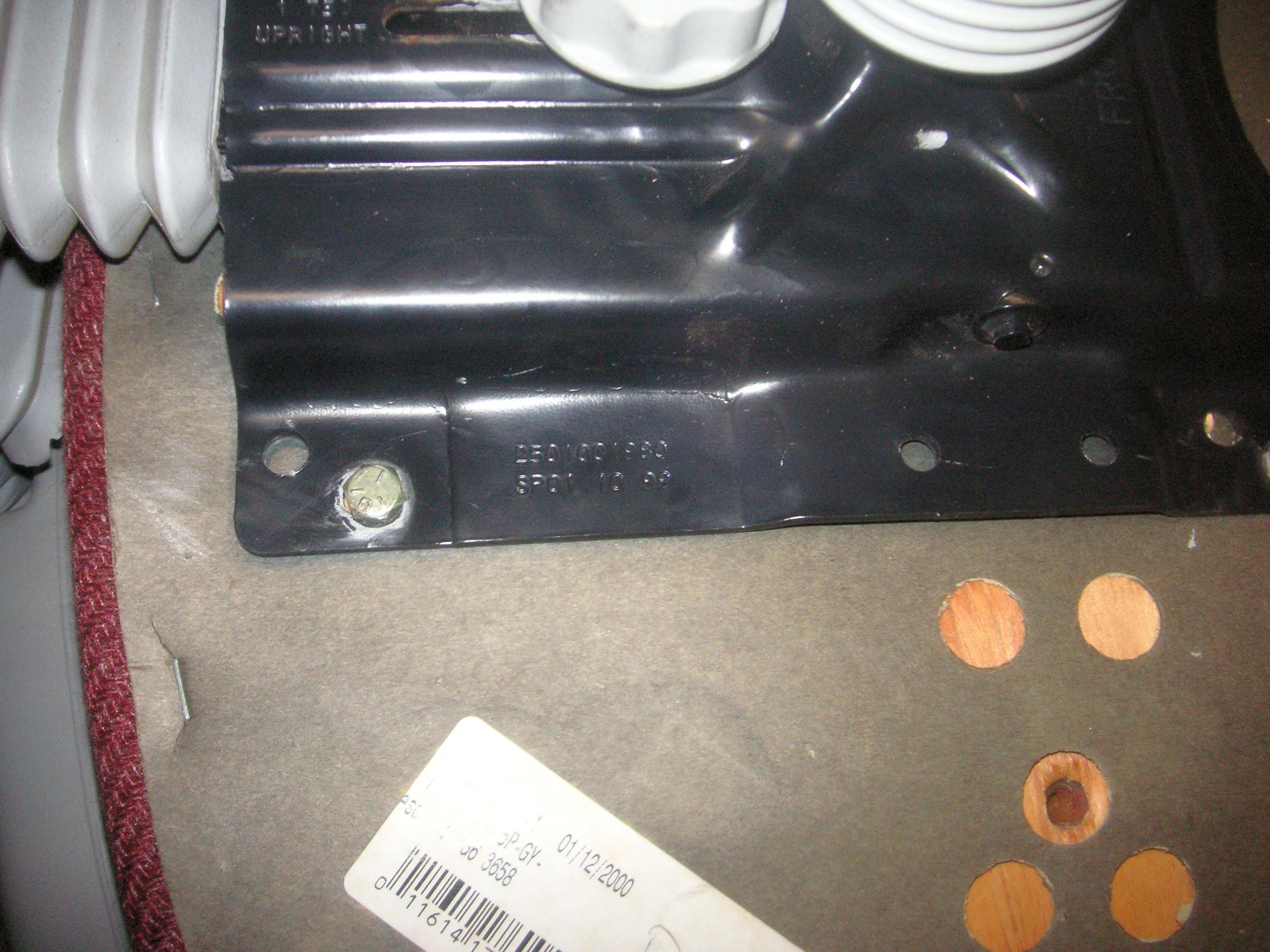

This looks to be, "2501001990 SP01 10 99".
.
Office-chair-cylinder-rebuild_10

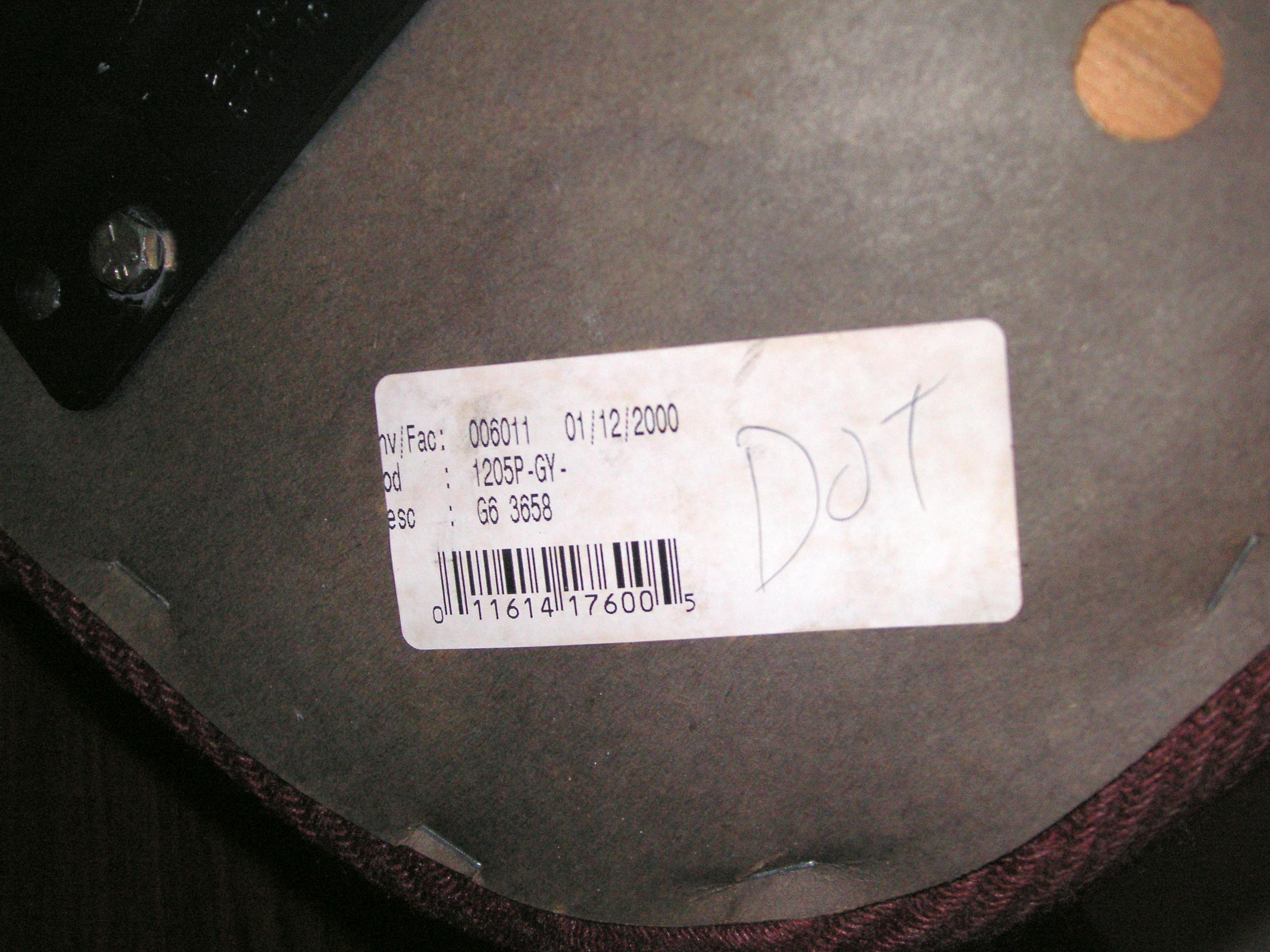

This says, 00011, 01/12/2000, G6 3658
UPC is 11614 17600.
move up a little to the right move down to the left
Office-chair-cylinder-rebuild_11

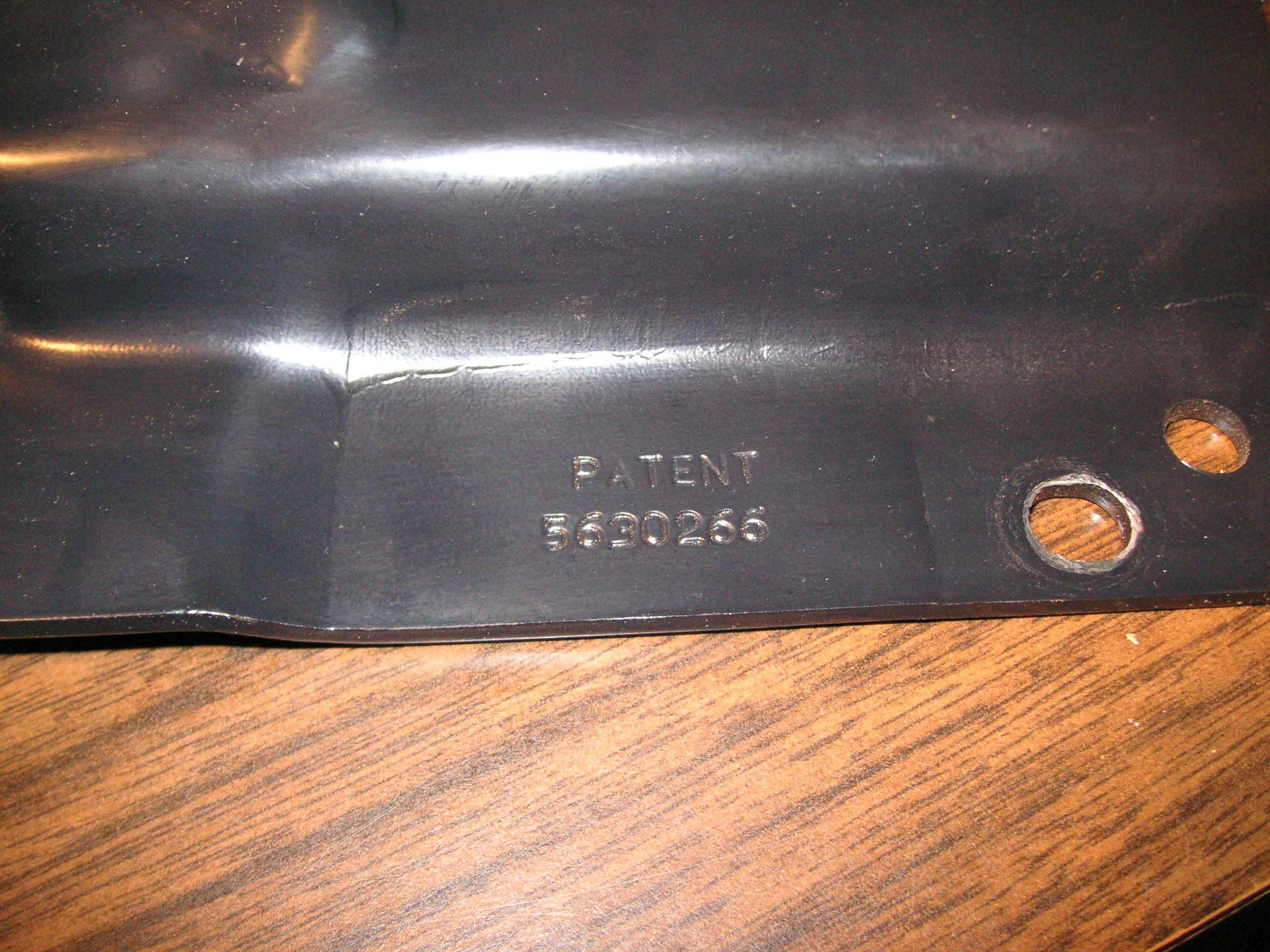

This stamp says, "PATENT 5630266".
.
Office-chair-cylinder-rebuild_12

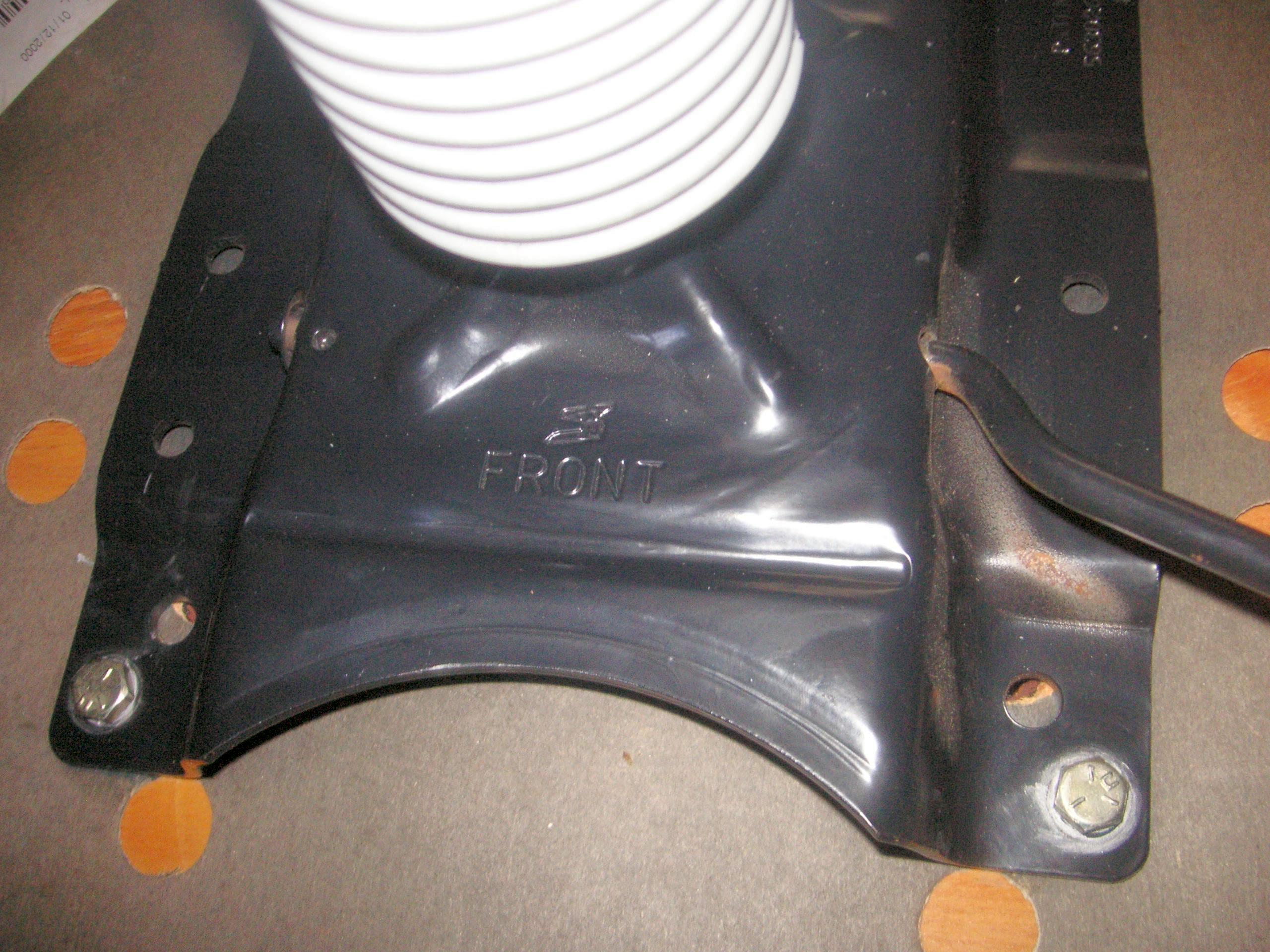

This says "FRONT," with some type of logo or symbol above it.
Office-chair-cylinder-rebuild_13

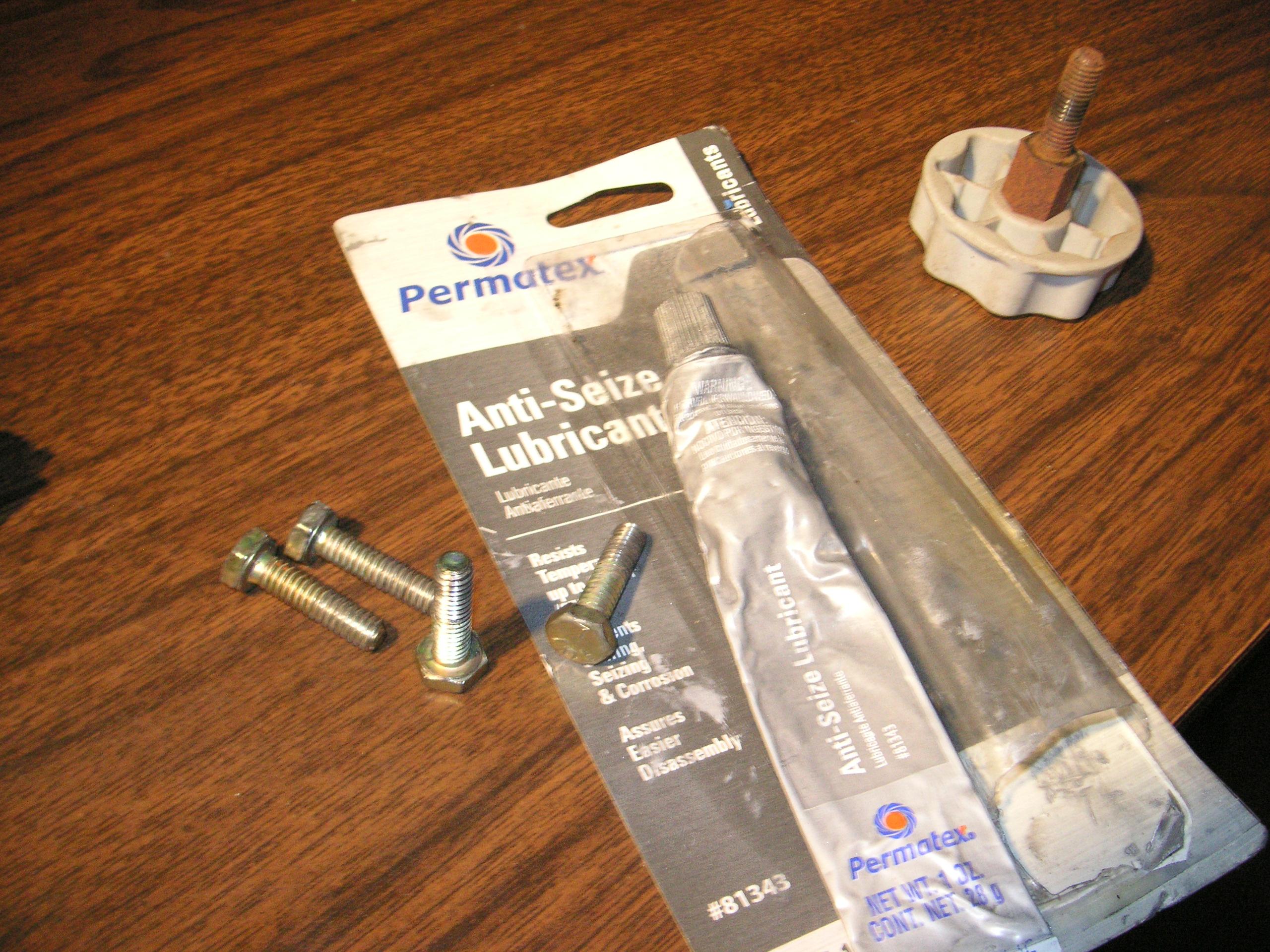

I used anti-seize on the threads so the chair will come apart easier the next time.
move up a little to the right move down to the left
Office-chair-cylinder-rebuild_14

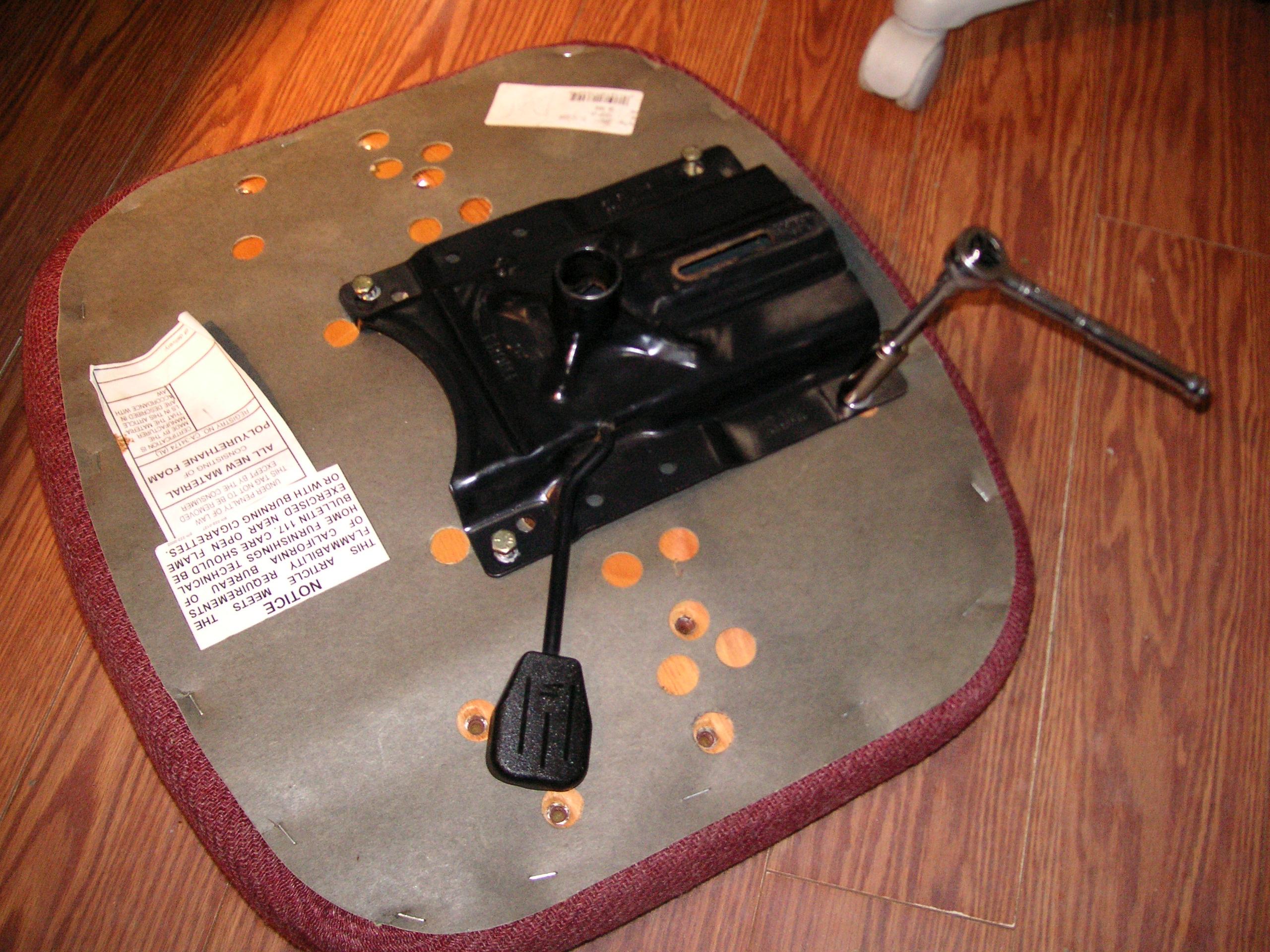

I had to remove the tilt plate in order to pound out the old cylinder. Four bolts made it easy.
Office-chair-cylinder-rebuild_15

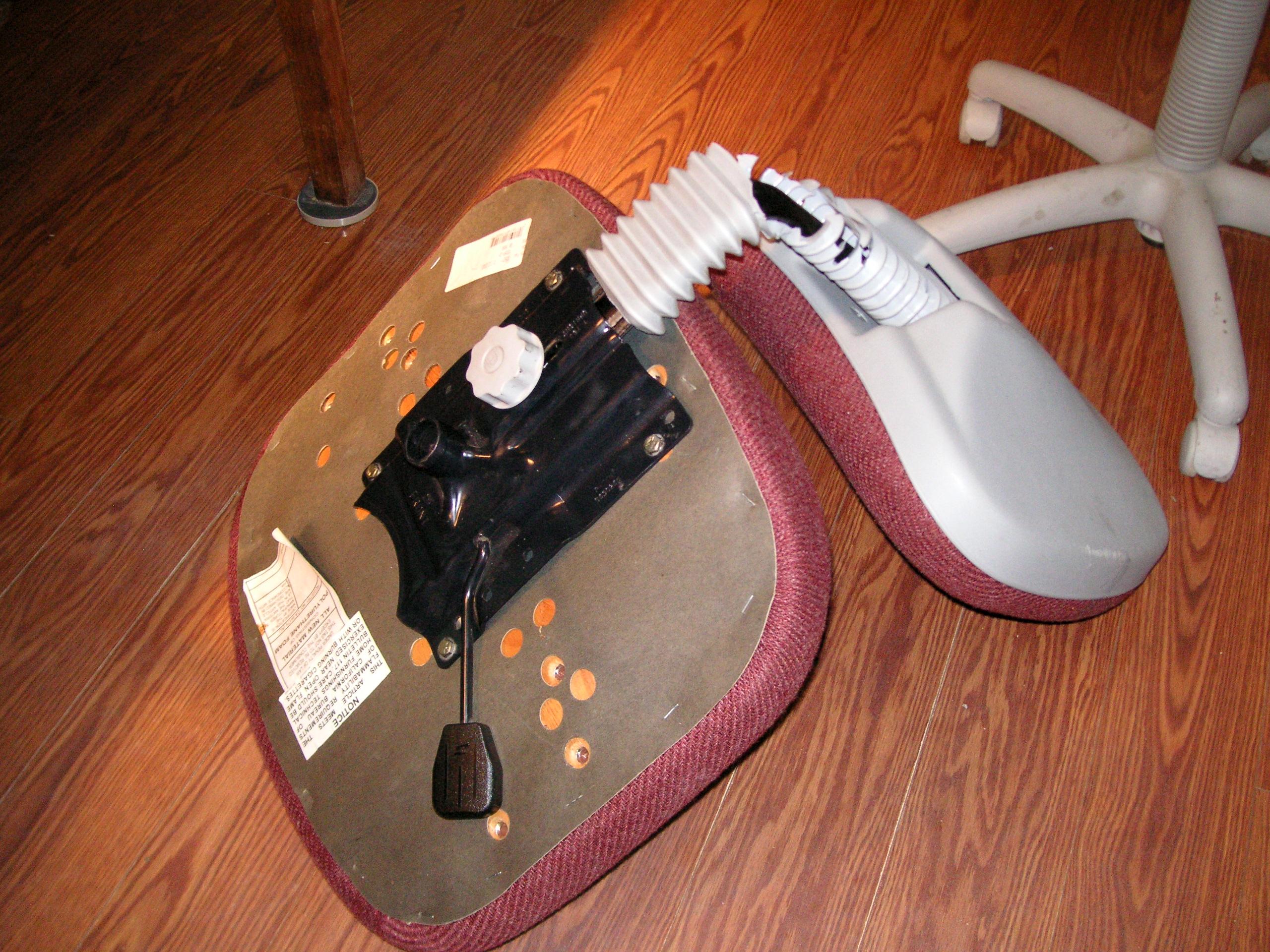

Now you can slip in the back of chair and secure it with the knob..
Office-chair-cylinder-rebuild_16

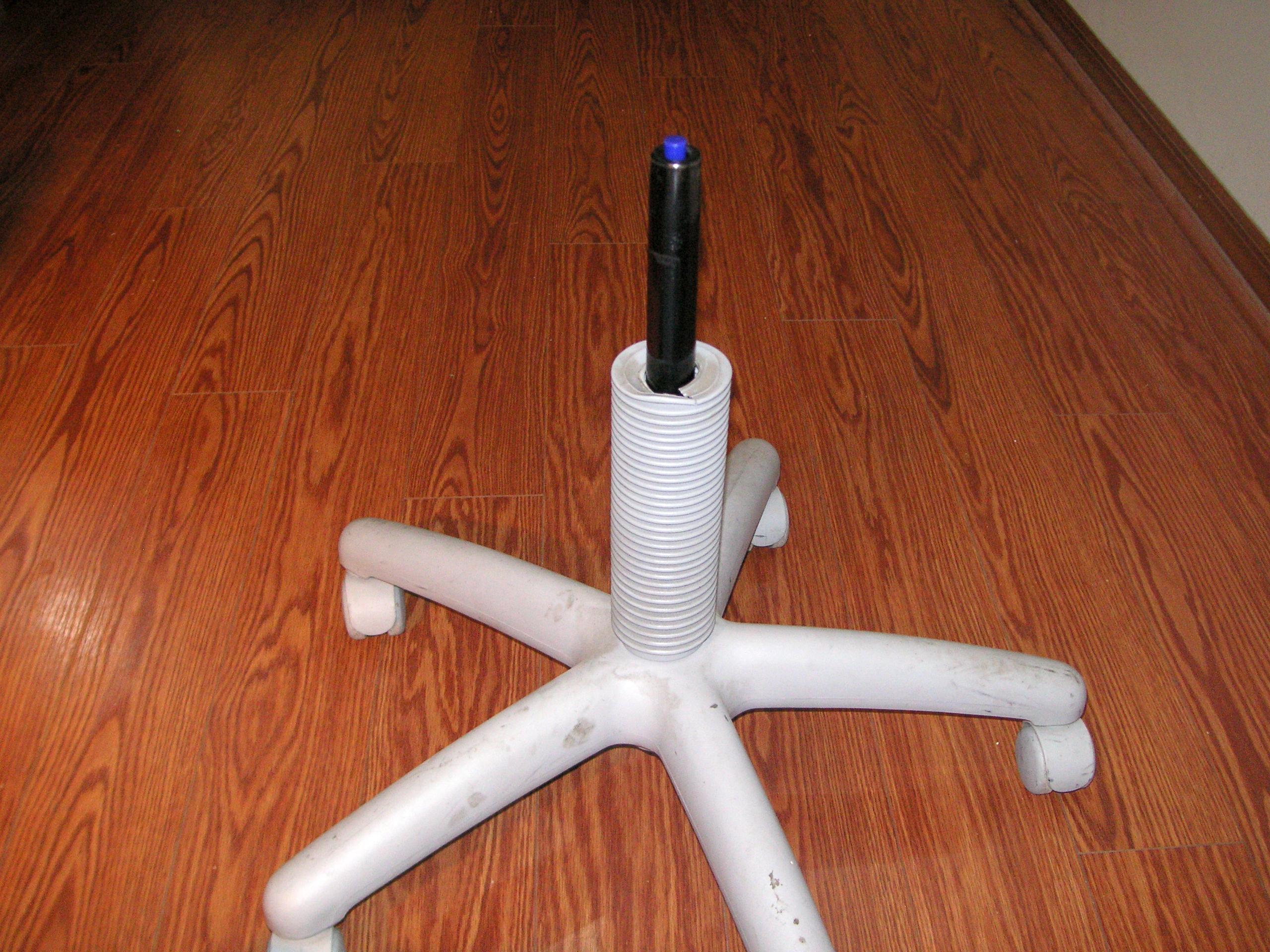

The accordion cover pops over the lift cylinder and the chair is ready for reassembly.
move up a little to the right move down to the left
Office-chair-cylinder-rebuild_17

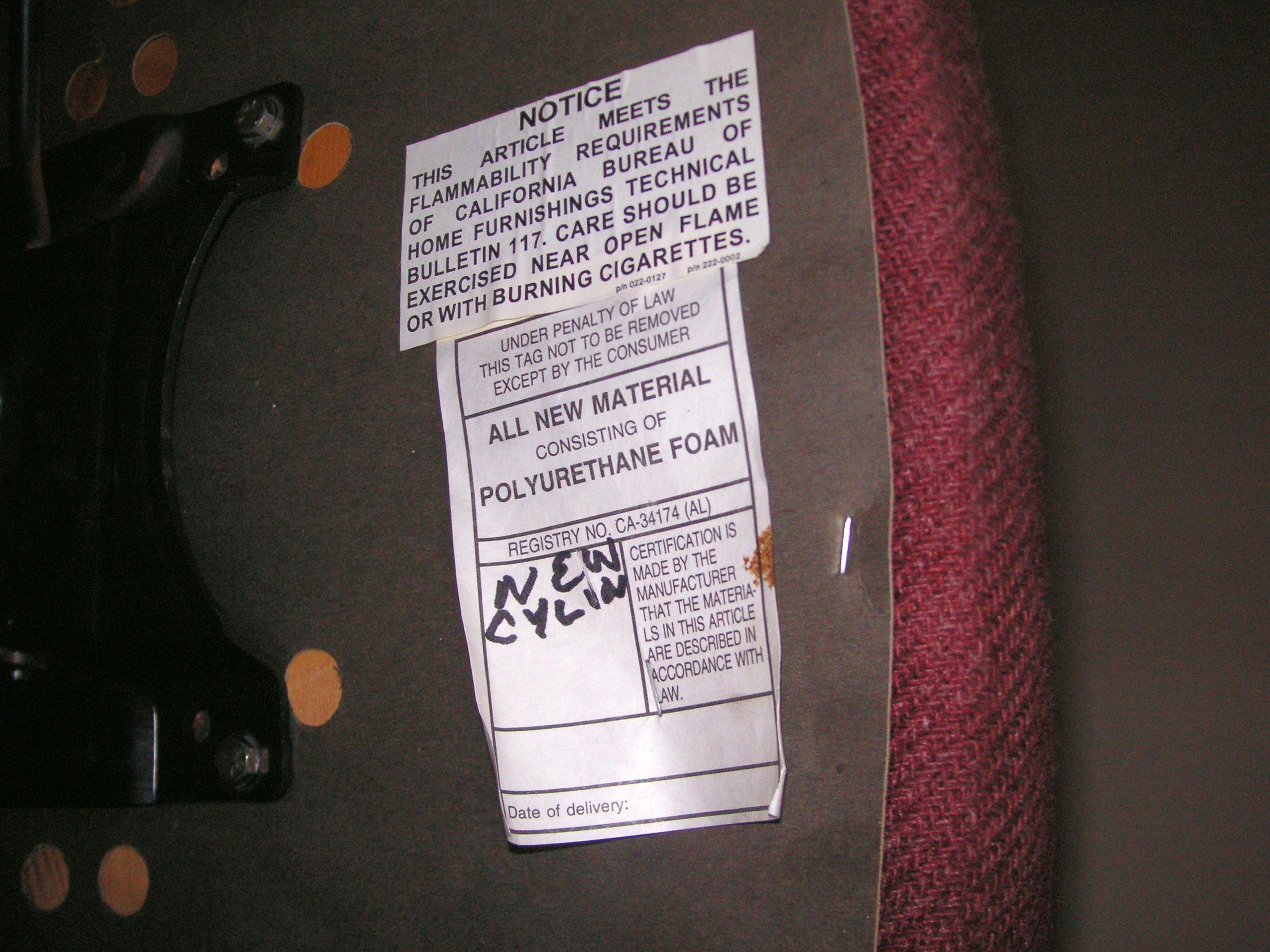

I marked "new cylinder" on a tag on the bottom to track just how long this one lasts.
Office-chair-cylinder-rebuild_18

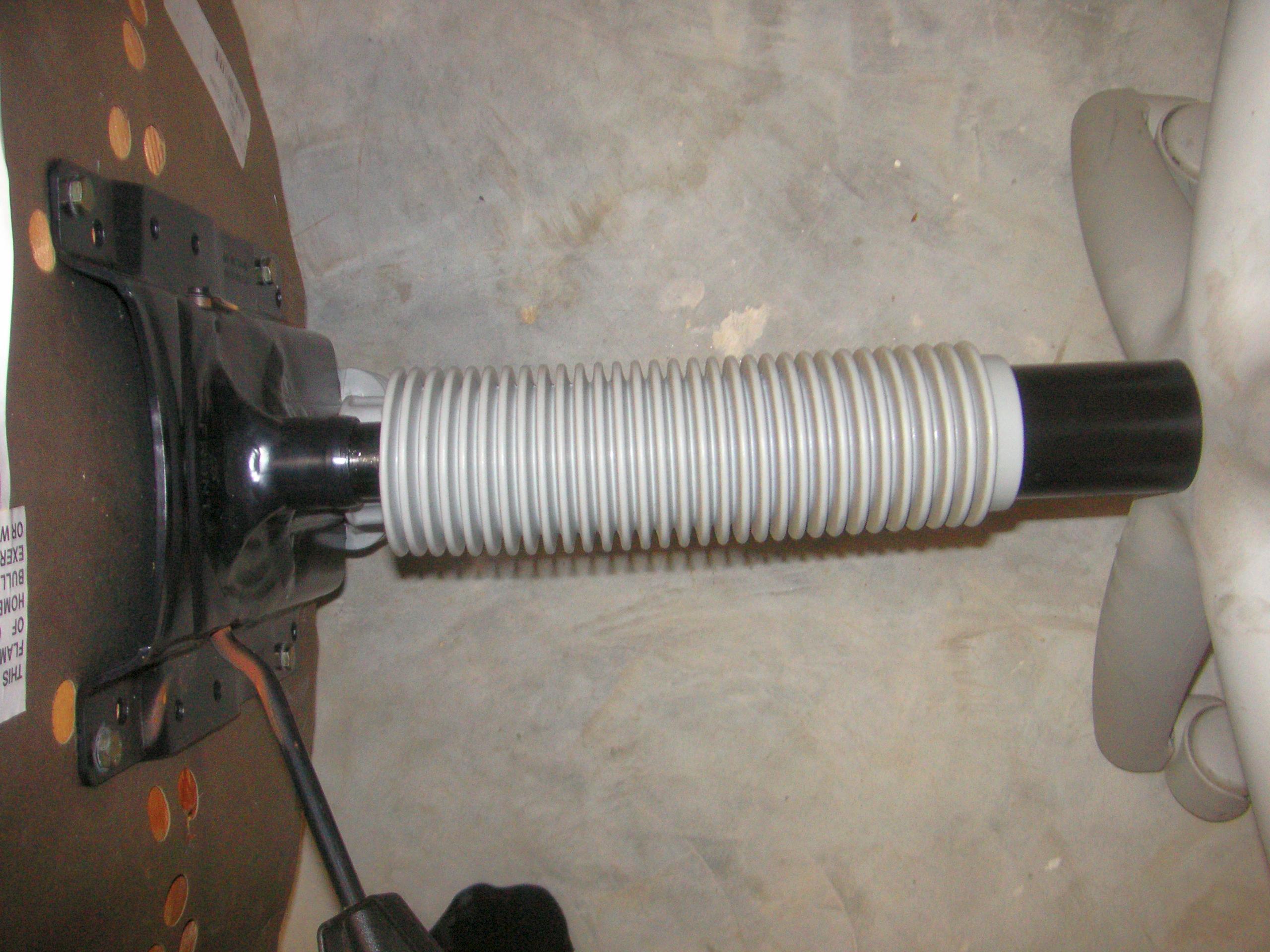

The accordion cover makes the chair look more substantial. The lever engages the gas release button on the new cylinder perfectly.Office-chair-cylinder-rebuild_20

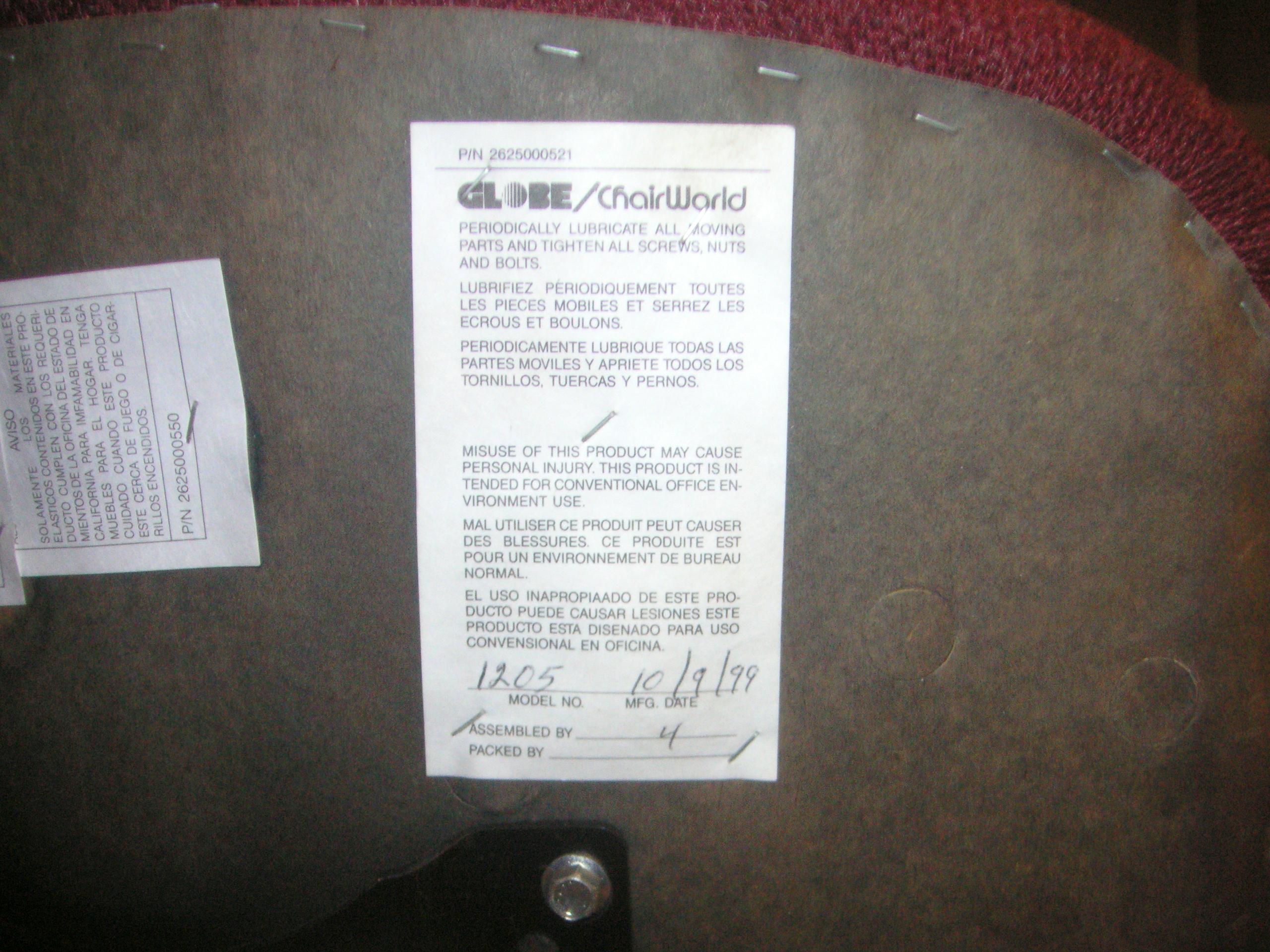

Another of the chairs says, Globe/Chairworld
move up a little to the right move down to the left

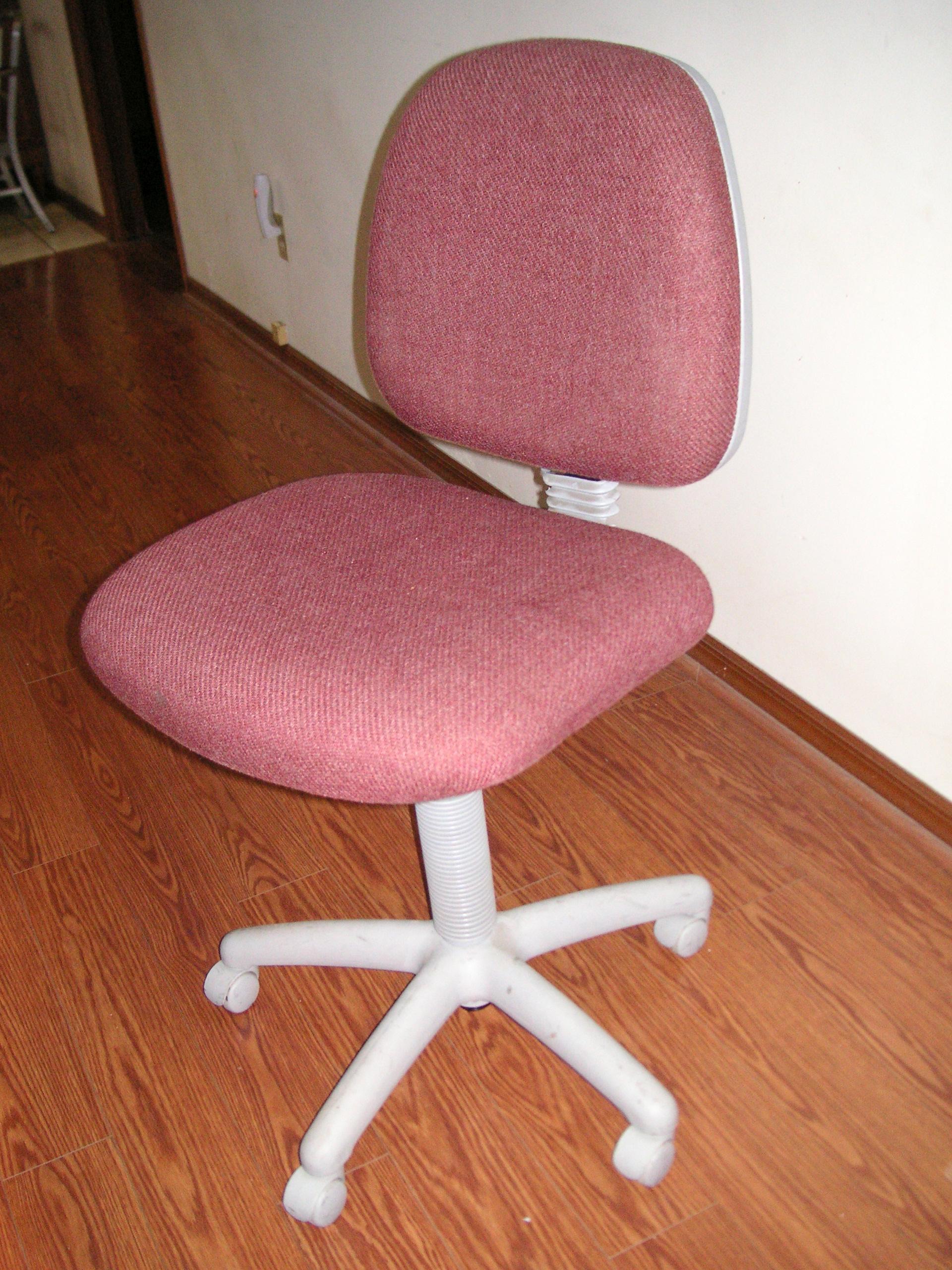

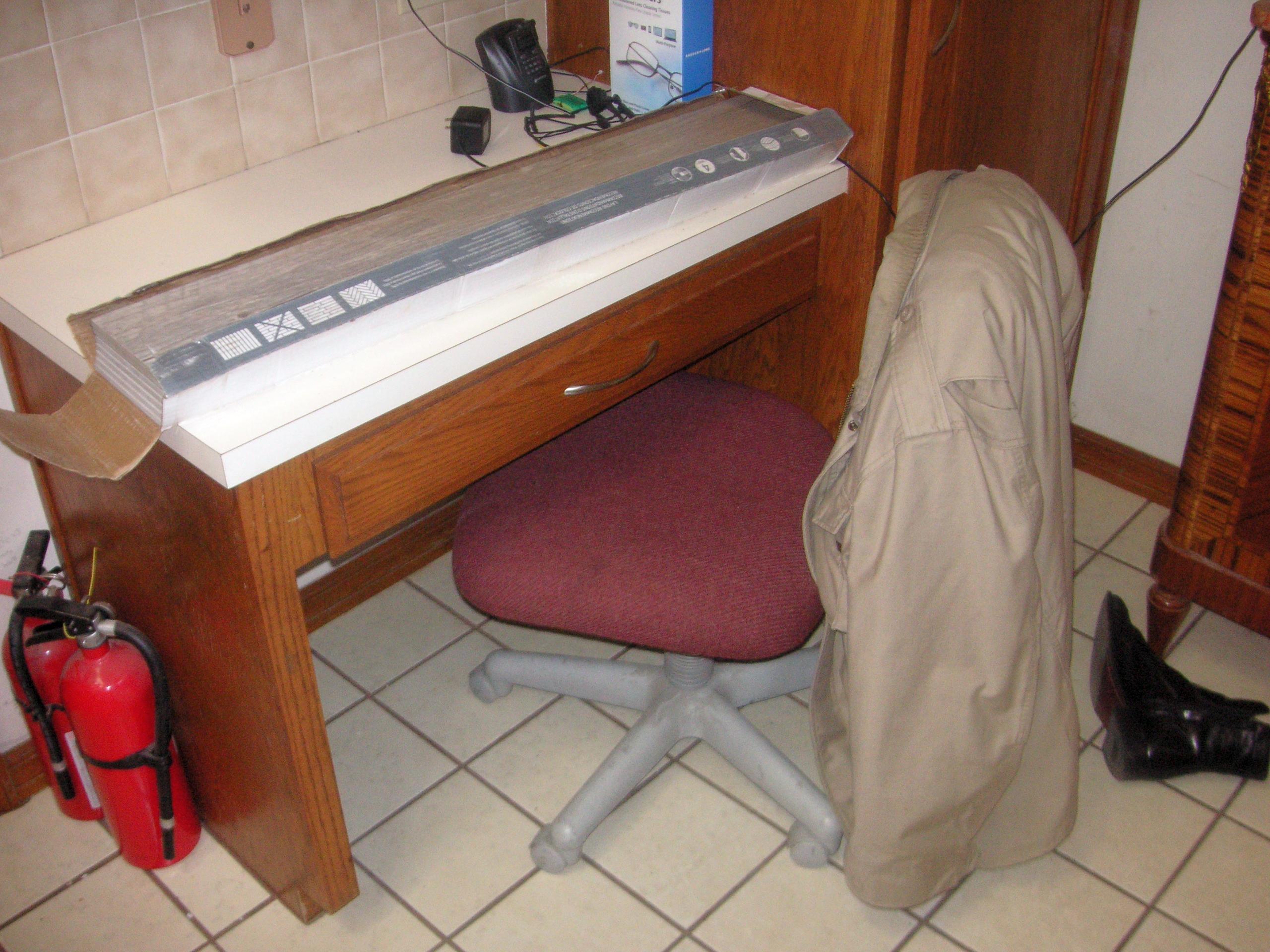

Office-chair-cylinder-rebuild_21I have the eight chairs scattered across the house. This one works well in the kitchen office nook.
.
Office-chair-cylinder-rebuild_19
Like a lot of older things, these chairs seem better built than the new stuff from Amazon or the big box office stores. I hope the replacement cylinder holds up. Meanwhile, I bought an extra cylinder for the next chair failure.
